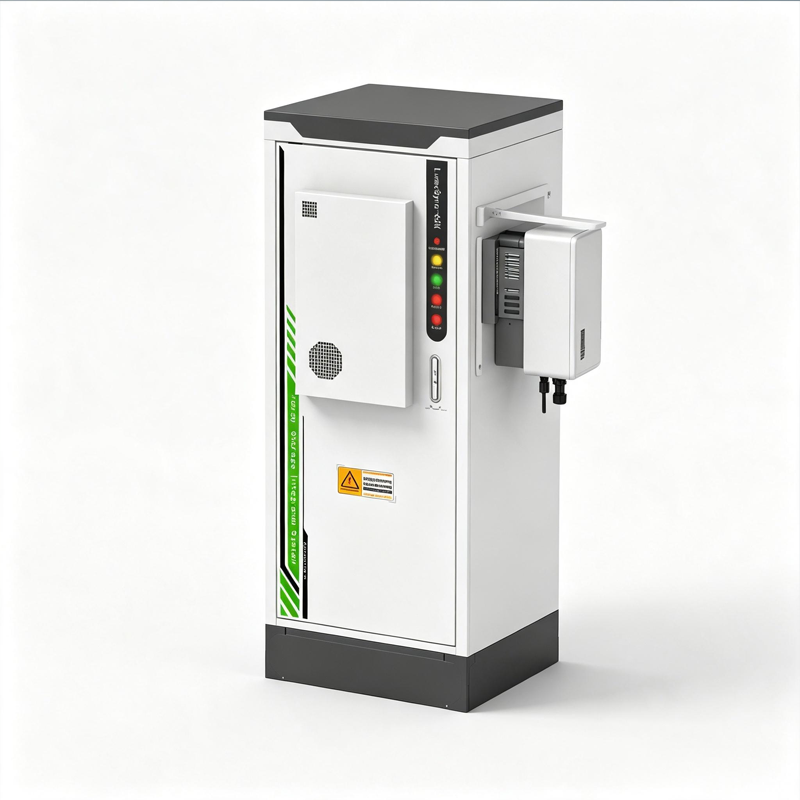

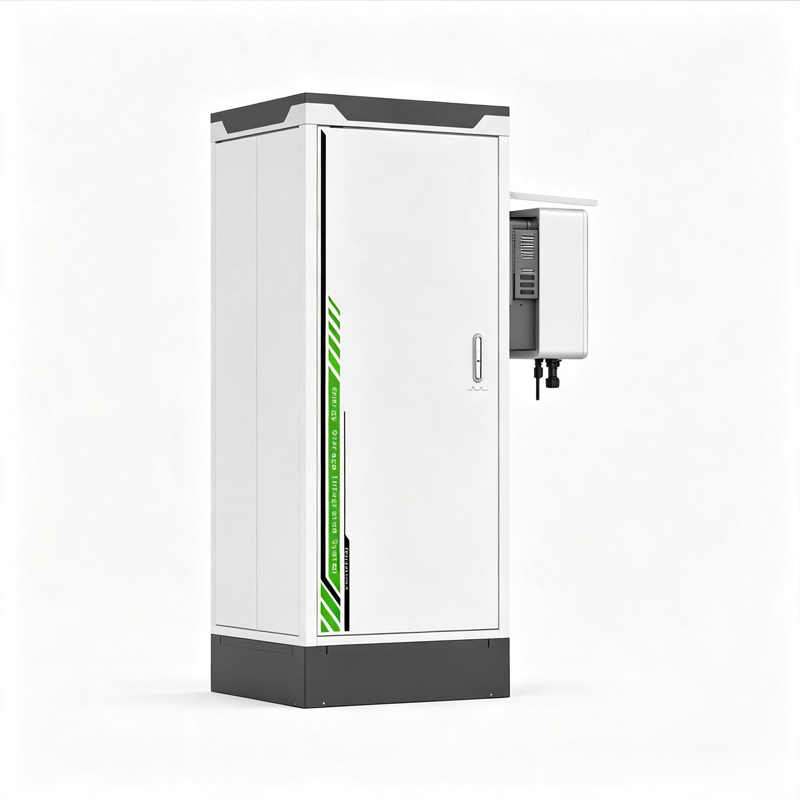

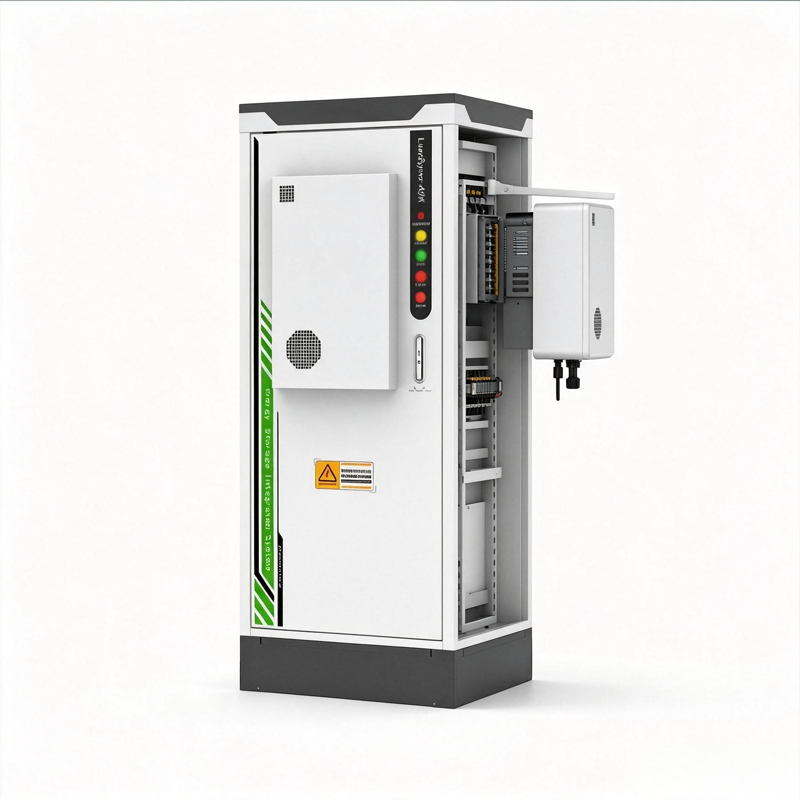

112kWh ESS + 30kW Hybrid Inverter
- ESS Components
- Nominal energy: 112kWh
- Hybrid Inverter power: 30kw
- Rated Voltage: 358.4V
- Rated Current :75A
- C-Rate: 0.3C(per PCS rated current)
- Cooling: Air Cooling
- Altitude: ≤2000
- IP Rating: IP55
- Ambient Temp:-20~60℃
- Hybrid PV-Storage Inverter
- Max Charge Current：75A
- Max PV Input (W)：48000
- MPPT Voltage Range (V)：150~850
- Off-grid Peak Power：1.5x rated, 10s
- Grid Connection：3L+N+PE
- Max Efficiency：98.50%
- DC Injection：<0.5% In
- THDi：<3%
- Altitude：3000m
- Noise：≤55 dB
- Communication Interface:RS485 / RS232 / CAN
- Diesel Storage:Store diesel power
